Single Arm Hydraulic Press Machine
Product model：Yz41
Product number：51
View videoBack
Feature：
Movable Table, Displacement Sensor, Knocking Device, Mould Exchanging Trolley, Cooling Device, Cushion Device, Photo-electric Safety Device System, Oil Heating Device, Industrial Touch Screen, Automat
SINGLE ARM HYDRAULIC PRESS
Yz41 Series

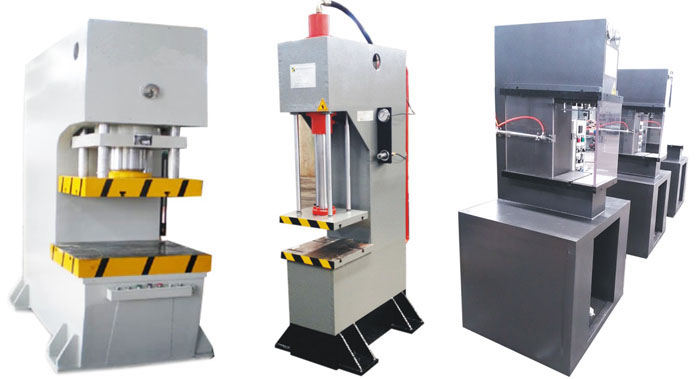

MACHINE APPEARANCE
PRESSING PROCESS DIAGRAM
DATA SHEET
Parameter
unit
1T
1.6T
2.5T
4T
6.3T
10T
16T
25T
40T
63T
100T
160T
250T
Nominal Force
KN
10
16
25
40
63
100
160
250
400
630
1000
1600
2500
Max working pressure of liquid
MPA
5.5
5.1
5.6
6.28
8.1
13
20.3
22.6
16.5
26.5
Max. daylight
mm
300
350
390
500
550
600
800
Max. stroke
120
200
Slider speed
Down
mm/s
60
45
50
36
24
23
Return
82
90
110
115
98
65
Throat deep
150
175
220
Table size
front-back
450
left-right
700
The workbench high from the ground
desk type
710
650
730
750
Blanking hole diameter
70
80
140
Motor power
kw
1.1
1.5
2.2
4
7.5
8.5
11
15
Overall dimensions
Front-back
900
1200
1300
1400
Left-right
Height
1450
1800
1900
2200
2900
3200
OPTIONAL ACCESSARIES
ACCESSARIES BRAND
